Description
Technical Data
| Product Name | P/N | Pressure Type | Output | Product Type | Range | Working voltage(V) | Dimension(mm) | Packaging Method | Storage Conditions | Applications |

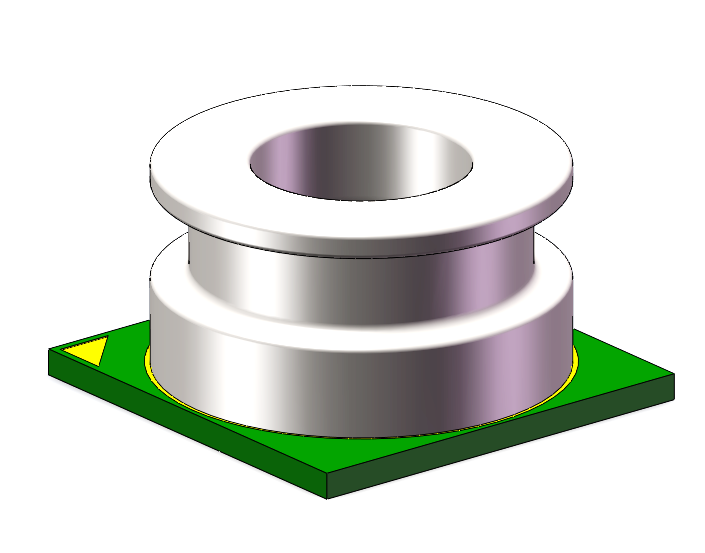

| Pressure Sensor (Water-resistant Series) | SVP-4040D-040G | Gauge Pressure | Digital IIC | MEMS+ASIC Dual chips | 0~40 kPa | 1.8~3.6 | 4.0(L)×4.0(W)×2.0(H) | Tape and Reel | Store at (23±5)℃, humidity < 75%. Seal to prevent oxidation of pins or pads. | Blood Pressure Monitoring Watch |

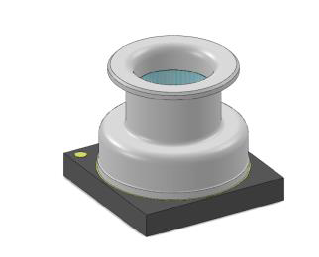

| Pressure Sensor (Water-resistant Series) | SVP05D-001 | Absolute Pressure | Digital IIC | MEMS+ASIC Dual chips | 300~1200hPa | 1.7~3.6 | 3.2(L)×3.2(W)×2.8(H) | Tape and Reel | Store at (23±5)℃, humidity < 75%. Seal to prevent oxidation of pins or pads. | Household gas meter leak detection |
Product Description
The Water - resistant Series Pressure Sensors, including SVP - 4040D - 040G and SVP05D - 001, are MEMS + ASIC dual chips with digital IIC output. Model SVP - 4040D - 040G has a pressure range of 0 - 40kPa, while SVP05D - 001 is 300 - 1200hPa. They work on 1.8 - 3.6V (SVP - 4040D - 040G) and 1.7 - 3.6V (SVP05D - 001), sized at 4.0(L) × 4.0(W) × 2.0(H) mm and 3.2(L) × 3.2(W) × 2.8(H) mm respectively, and are packaged in Tape and Reel. Storage requires (23 ± 5) °C, humidity below 75%, and sealing to prevent oxidation. Applications are blood pressure monitoring watches and household gas meters.
Product Advantages
- Water - resistant Design: Suitable for use in humid environments or applications where contact with water may occur.
- High Precision Measurement: Digital IIC output ensures accurate and reliable pressure measurements.
- Low Power Consumption: Working voltages of 1.8 - 3.6V and 1.7 - 3.6V indicate relatively low power consumption.
- Compact Size: Small dimensions make them easy to integrate into different devices.
- Good Compatibility: Digital IIC output offers good compatibility with various systems.
