Description
Technical Data
| Product Name | P/N | Pressure Type | Output | Product Type | Range | Working voltage(V) | Dimension(mm) | Packaging Method | Storage Conditions | Applications |
| Force Sensor Module | SV-FSR-0025L | Oil pressure | Analog | MEMS single chip | 0~25LB | 4.75~5.25 | φ19*5.6mm | Tray | Store at (23±5)℃, humidity < 75%. | Medical infusion pump, syringe pump |
| Force Sensor Module | SV-BPFO-200 | Oil pressure | 485 | MEMS single chip +MCU |
0~200Kg (Customizable) |
4.5~5.5 | φ36*8.5mm | Tray | Store at (23±5)℃, humidity < 75%. | Shared electric vehicle overload prevention application |
Product Description

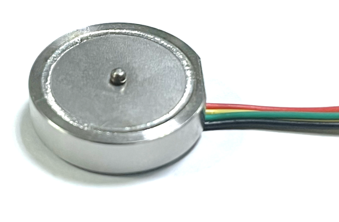

The Force Sensor Modules, including SV - FSR - 0025L and SV - BPFO - 200, are designed for oil pressure measurement. The SV - FSR - 0025L is a MEMS single chip with an analog output, featuring a range of 0 - 25LB, working voltage of 4.75 - 5.25V, and dimensions of φ10×5.6mm. The SV - BPFO - 200 consists of a MEMS single chip + MCU, with a customizable range of 0 - 200Kg, operating at 4.5 - 5.5V, and sized φ36×8.5mm. Both use Tray packaging and require storage at (23 ± 5) °C with humidity < 75%, sealed to prevent oxidation. Applications cover medical infusion pumps, vehicle overload prevention, etc.
Product Advantages
- High Sensitivity: Effectively detects minute changes in force.
- Wide Measurement Range: From 0 - 25LB to 0 - 200Kg, meeting diverse measurement needs.
- Low Power Consumption: Working voltages of 4.75 - 5.25V and 4.5 - 5.5V indicate relatively low power consumption.
- Compact Size: Easy to integrate into different devices.
- Good Stability: Storage conditions ensure stability and reliability.
