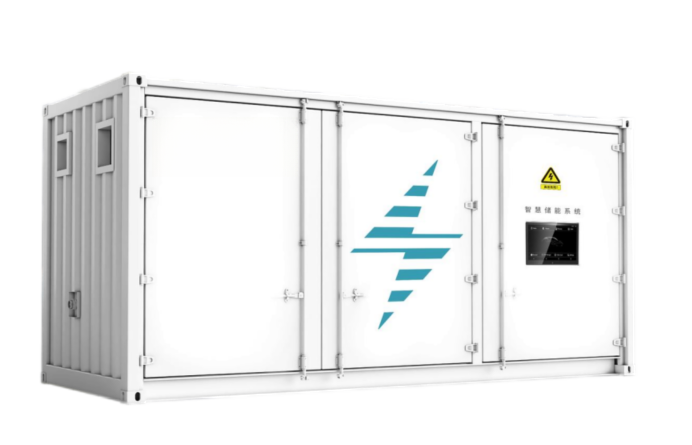

Integrated Cascaded Energy Storage System（Z-POWER-12）
Integrated Cascaded Energy Storage System（Z-POWER-12）
Description
Technical Data
|
System Configuration |
12-pack integrated system |
|
DC-side Battery Capacity @BOL |
1080-1200 kWh |
|
Battery Voltage Range |
330-467.5 V |
|
Output Power |
480 kW |
|
Battery Cabinet Dimensions (W×D×H) |
3m × 7m × 2.9m |
| Battery Cabinet Weight | 19,000 kg |
|
IP Rating |
IP54 |
|
Corrosion Resistance Grade |
C3 |
|
Operating Humidity Range |
0-95% (non-condensing) |
|
Operating Temperature Range |
-30°C to 50°C (derating at ＞45°C) |
|
Maximum Operating Altitude |
3000m |
|
Fire Safety Configuration |
Perfluorohexanone Combustible gas detection + exhaust ventilation + immersion fire suppression |
|
Cooling Method |
Liquid Cooling |
